FEATURES:
This female DIP strip is used in conjunction with Aries' Shorting Plug SP200, available separately, for your programming needs.
"Break" feature allows strips to be cut to the number of positions desired.

SPECIFICATIONS:
Body material is black UL 94V-0 Glass-filled Nylon.
Pin body is Brass Alloy 360 1/2 hard per UNS C36000 ASTM-B16-85.
Pin body plating is 200 u [5.08 um] min. 93/7 Tin/Lead per MIL-P-81728 over 100 u [2.54 um] min. Nickel per QQ-N-290.
4-fingered collet contact is Beryllium Copper 172 HT per QQ-C-533. Beryllium Copper Alloy per UNS C17200 ASTM-B194-92.
Collet contact plating is 30 u [.76 um] min. Gold per MIL-G-45204 over 50 u [1.27 um] min. Nickel per QQ-N-290.
Contact current rating=8 Amps.
Operating temperature=221°F [105°C].
Insertion Force=240 grams/pin; Withdrawal Force=130 grams/pin; Normal Force=210 grams/pin; based on a .040 [1.02] diameter test lead.
Accepts leads .032-.047 [.81-1.19] in diameter, .130-.180 [3.30-4.56] long.

MOUNTING CONSIDERATIONS:
Suggested PCB hole size=.081 + .002 [2.03 + .05] dia.

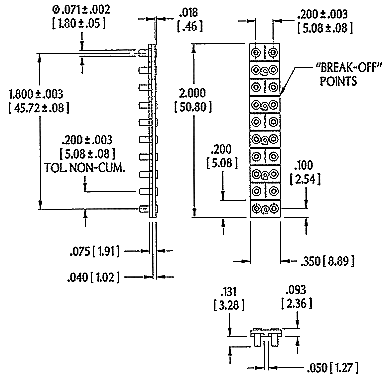

20-F40-10
Thru-Hole .040 [1.02]
Female DIP Strips
