FEATURES:
 Ideal for elevating devices (displays, switches, etc.) to desired level with .240 to 1.250 [6.10 to 31.75] height extension.
SPECIFICATIONS:
Socket body is black UL 94-HB Glass-filled Nylon.
Spacer is red UL 94-HB Glass-filled Nylon. Consult Beckwith Electronics
for UL 94V-0 rated material.
Pin body is Brass Alloy 360 1/2 hard per UNS C36000 ASTM-B16-85.
Pin body plating is 200 u [1.27 um] min. 93/7 Tin/Lead per MIL-P-81728 over 100 u [2.54 um] min. Nickel per QQ-N-290. Gold plating also available (consult Beckwith Electronics).
4-fingered collet contact is Beryllium Copper Alloy per UNS C17200 ASTM-B194-92.
Contact plating is 30 u [.76 um] min. Gold per MIL-G-45204 over 50 u [1.27 um] min. Nickel per QQ-N-290.
Contact current rating=3 Amps.
Operating temperature=221°F [105°C]
Insertion Force=180 grams/pin; Withdrawal Force=90 grams/pin; Normal Force=140 grams/pin; based on a .018 [.46] diameter test lead.
Accepts leads .015-.025 [.38-.64] in diameter, .110-.150 [2.79-3.81] long.
MOUNTING CONSIDERATIONS:

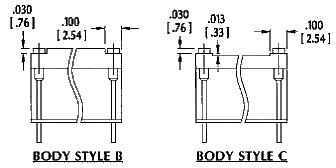

Suggested PCB hole size=.035 +.002 [.89 + .05] dia.

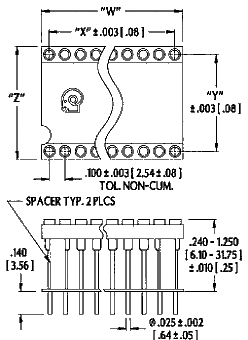

"W"= No. of Pins per Row X .100 [2.54]
"X"= (No. of Pins per Row - 1) X .100 [2.54]
|
Series 8XXX
Collet Elevator Sockets
on .300 [7.62] and
.600 [15.24] centers

|
