Aries Electronics

Ideal for elevating devices (displays, switches, etc.) to desired level with .285 to 1.250 [7.24 to 31.75] height extension.

Socket body and spacer are black UL 94-HB Glass-filled Nylon. Consult Beckwith Electronics for UL 94V-0 rated material.
Pin body is Brass Alloy 360 1/2 hard per UNS C36000 ASTM-B16-85.
Pin body plating is 200 u [1.27 um] min. 93/7 Tin/Lead per MIL-P-81728 over 100 u [2.54 um] min. Nickel per QQ-N-290. Gold plating also available (consult Beckwith Electronics)
4-fingered collet contact is Beryllium Copper Alloy per UNS C17200 ASTM-B194-92.
Contact plating is 30 u [.76 um] min. Gold per MIL-G-45204 over 50 u [1.27 um] min. Nickel per QQ-N-290.
Contact current rating=3 Amps.
Operating temperature=221°F [105°C]
Insertion Force=180 grams/pin; Withdrawal Force=90 grams/pin; Normal Force=140 grams/pin; (based on a .018 [.46] diameter test lead)
Accepts leads .015-.025 [.38-.64] in diameter, .110-.150 [2.79-3.81] long.

Suggested PCB hole size=.035 +.002 [.89 + .05] dia.

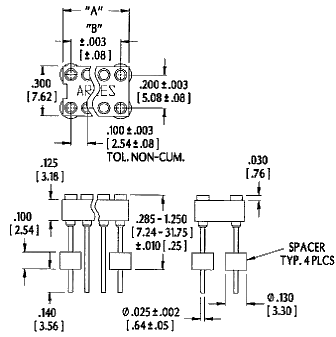

"A"= No. of Pins per Row X .100 [2.54]
"B"= (No. of Pins per Row - 1) X .100 [2.54]

Series 8XXX
Collet Elevator Sockets
on .200 [5.08] Centers
