FEATURES:
Aries offers a full line of Vertisockets for DIP packaging of LEDs, incandescent lamps, DIP switches, test points, etc. The variations of mounting position and pin configuration provide exceptional design freedom.
Restricted entry for contact protection.
Accepts standard LEDs and incandescent displays as well as .500 [12.70] and .600 [15.24] high large displays.

SPECIFICATIONS:
Body material is red UL 94-HB Glass-filled Nylon. Consult Beckwith Electronics for UL 94V-0 rated material.
Bifurcated contacts are Grade A spring-tempered Phosphor Bronze per QQ-B-750.
Contact plating is either 100 u [2.54 um] min. Tin per MIL-T-10727 or 10 u [.254 um] min. Gold per MIL-G-45204, over 50 u [1.27 um] min. Nickel per QQ-N-290.
Contact current rating=1.5 Amps.
Operating temperature:
    221°F [105°C] Tin plating,
    257°F [125°C] Gold plating.
Insertion Force=110 grams/pin average; Withdrawal Force=75 grams/pin average.
Accepts flat leads up to .014 [.36] thick and .020 [.51] wide; round leads up to .020 [.51] in diameter.
Accepts lead lengths: .075-.160 [1.91-4.06].

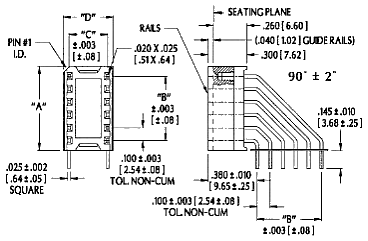

MOUNTING CONSIDERATIONS:
Suggested PCB hole size=.044 +.002 [1.12 + .05] dia.

"A"= No. of Pins per Row X .100 [2.54] +.050 [1.27]
"B"= (No. of Pins per Row - 1) X .100 [2.54]
