Aries Electronics

FEATURES:
Aries offers a full line of Vertisockets for DIP packaging of LEDs, incandescent lamps, DIP switches, test points, etc. The variations of mounting position and pin configuration provide exceptional design freedom.
Restricted entry for contact protection.
Accepts standard LEDs and incandescent displays as well as .500 [12.70] and .600 [15.24] high large displays.

SPECIFICATIONS:
Body material is red UL 94-HB Glass-filled Nylon. Consult Beckwith Electronics for UL 94V-0 rated material.
Bifurcated contacts are Grade A spring-tempered Phosphor Bronze per QQ-B-750.
Contact plating is either 100 u [2.54 um] min. Tin per MIL-T-10727 or 10 u [.254 um] min. Gold per MIL-G-45204, over 50 u [1.27 um] min. Nickel per QQ-N-290.
Contact current rating=1.5 Amps.
Operating temperature:
    221°F [105°C] Tin plating,
    257°F [125°C] Gold plating.
Insertion Force=110 grams/pin average; Withdrawal Force=75 grams/pin average.
Accepts flat leads up to .014 [.36] thick and .020 [.51] wide; round leads up to .020 [.51] in diameter.
Accepts lead lengths: .075-.160 [1.91-4.06].

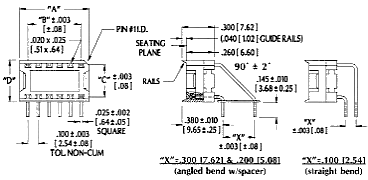

MOUNTING CONSIDERATIONS:
Suggested PCB hole size=.044 +.002 [1.12 + .05] dia.

"A"= No. of Pins per Row X .100 [2.54] +.050 [1.27]
"B"= (No. of Pins per Row - 1) X .100 [2.54]

Series 800
Horizontal Mounting
with Bifurcated Contacts


Centers "C" Dim. "D" Dim. "X" Available Sizes
.200 [5.08] .290 [7.37] .100 [2.54] 8, 10
.200 [5.08] .290 [7.37] .200 [5.08] 8, 10
.200 [5.08] .290 [7.37] .300 [7.62] 8, 10
.300 [7.62] .390 [9.91] .100 [2.54] 8, 14 thru 20
.300 [7.62] .390 [9.91] .200 [5.08] 8, 14 thru 20
.300 [7.62] .390 [9.91] .300 [7.62] 8, 14 thru 20
.600 [15.24] .690 [17.53] .100 [2.54] 8 thru 40, 48
.600 [15.24] .690 [17.53] .200 [5.08] 8 thru 40, 48
.600 [15.24] .690 [17.53] .300 [7.62] 8 thru 40, 48



Consult Beckwith Electronics
for sizes not shown
and special display angles.

Part Numbers
08-2820-90
08-2820-90WR
08-2820-90T
08-2820-90TWR
08-2822-90
08-2822-90WR
08-2822-90T
08-2822-90TWR
08-2823-90
08-2823-90WR
08-2823-90T
08-2823-90TWR
08-820-90
08-820-90WR
08-820-90T
08-820-90TWR
08-822-90
08-822-90WR
08-822-90T
08-822-90TWR
08-823-90
08-823-90WR
08-823-90T
08-823-90TWR
08-6820-90
08-6820-90WR
08-6820-90T
08-6820-90TWR
08-6822-90
08-6822-90WR
08-6822-90T
08-6822-90TWR
08-6823-90
08-6823-90WR
08-6823-90T
08-6823-90TWR
10-2820-90
10-2820-90WR
10-2820-90T
10-2820-90TWR
10-2822-90
10-2822-90WR
10-2822-90T
10-2822-90TWR
10-2823-90
10-2823-90WR
10-2823-90T
10-2823-90TWR
10-6820-90
10-6820-90WR
10-6820-90T
10-6820-90TWR
10-6822-90
10-6822-90WR
10-6822-90T
10-6822-90TWR
10-6823-90
10-6823-90WR
10-6823-90T
10-6823-90TWR
12-6820-90
12-6820-90WR
12-6820-90T
12-6820-90TWR
12-6822-90
12-6822-90WR
12-6822-90T
12-6822-90TWR
12-6823-90
12-6823-90WR
12-6823-90T
12-6823-90TWR
14-820-90
14-820-90WR
14-820-90T
14-820-90TWR
14-822-90
14-822-90WR
14-822-90T
14-822-90TWR
14-823-90
14-823-90WR
14-823-90T
14-823-90TWR
14-6820-90
14-6820-90WR
14-6820-90T
14-6820-90TWR
14-6822-90
14-6822-90WR
14-6822-90T
14-6822-90TWR
14-6823-90
14-6823-90WR
14-6823-90T
14-6823-90TWR
16-820-90
16-820-90WR
16-820-90T
16-820-90TWR
16-822-90
16-822-90WR
16-822-90T
16-822-90TWR
16-823-90
16-823-90WR
16-823-90T
16-823-90TWR
16-6820-90
16-6820-90WR
16-6820-90T
16-6820-90TWR
16-6822-90
16-6822-90WR
16-6822-90T
16-6822-90TWR
16-6823-90
16-6823-90WR
16-6823-90T
16-6823-90TWR
18-820-90
18-820-90WR
18-820-90T
18-820-90TWR
18-822-90
18-822-90WR
18-822-90T
18-822-90TWR
18-823-90
18-823-90WR
18-823-90T
18-823-90TWR
18-6820-90
18-6820-90WR
18-6820-90T
18-6820-90TWR
18-6822-90
18-6822-90WR
18-6822-90T
18-6822-90TWR
18-6823-90
18-6823-90WR
18-6823-90T
18-6823-90TWR
20-820-90
20-820-90WR
20-820-90T
20-820-90TWR
20-822-90
20-822-90WR
20-822-90T
20-822-90TWR
20-823-90
20-823-90WR
20-823-90T
20-823-90TWR
20-6820-90
20-6820-90WR
20-6820-90T
20-6820-90TWR
20-6822-90
20-6822-90WR
20-6822-90T
20-6822-90TWR
20-6823-90
20-6823-90WR
20-6823-90T
20-6823-90TWR
22-6820-90
22-6820-90WR
22-6820-90T
22-6820-90TWR
22-6822-90
22-6822-90WR
22-6822-90T
22-6822-90TWR
22-6823-90
22-6823-90WR
22-6823-90T
22-6823-90TWR
24-6820-90
24-6820-90WR
24-6820-90T
24-6820-90TWR
24-6822-90
24-6822-90WR
24-6822-90T
24-6822-90TWR
24-6823-90
24-6823-90WR
24-6823-90T
24-6823-90TWR
26-6820-90
26-6820-90WR
26-6820-90T
26-6820-90TWR
26-6822-90
26-6822-90WR
26-6822-90T
26-6822-90TWR
26-6823-90
26-6823-90WR
26-6823-90T
26-6823-90TWR
28-6820-90
28-6820-90WR
28-6820-90T
28-6820-90TWR
28-6822-90
28-6822-90WR
28-6822-90T
28-6822-90TWR
28-6823-90
28-6823-90WR
28-6823-90T
28-6823-90TWR
30-6820-90
30-6820-90WR
30-6820-90T
30-6820-90TWR
30-6822-90
30-6822-90WR
30-6822-90T
30-6822-90TWR
30-6823-90
30-6823-90WR
30-6823-90T
30-6823-90TWR
32-6820-90
32-6820-90WR
32-6820-90T
32-6820-90TWR
32-6822-90
32-6822-90WR
32-6822-90T
32-6822-90TWR
32-6823-90
32-6823-90WR
32-6823-90T
32-6823-90TWR
34-6820-90
34-6820-90WR
34-6820-90T
34-6820-90TWR
34-6822-90
34-6822-90WR
34-6822-90T
34-6822-90TWR
34-6823-90
34-6823-90WR
34-6823-90T
34-6823-90TWR
36-6820-90
36-6820-90WR
36-6820-90T
36-6820-90TWR
36-6822-90
36-6822-90WR
36-6822-90T
36-6822-90TWR
36-6823-90
36-6823-90WR
36-6823-90T
36-6823-90TWR
38-6820-90
38-6820-90WR
38-6820-90T
38-6820-90TWR
38-6822-90
38-6822-90WR
38-6822-90T
38-6822-90TWR
38-6823-90
38-6823-90WR
38-6823-90T
38-6823-90TWR
40-6820-90
40-6820-90WR
40-6820-90T
40-6820-90TWR
40-6822-90
40-6822-90WR
40-6822-90T
40-6822-90TWR
40-6823-90
40-6823-90WR
40-6823-90T
40-6823-90TWR
48-6820-90
48-6820-90WR
48-6820-90T
48-6820-90TWR
48-6822-90
48-6822-90WR
48-6822-90T
48-6822-90TWR
48-6823-90
48-6823-90WR
48-6823-90T
48-6823-90TWR
