FEATURES:
 For elevated mounting of LCDs and other odd-centered or high pin count components.
Any height from .360 to 2.000 [9.14 to 50.80].

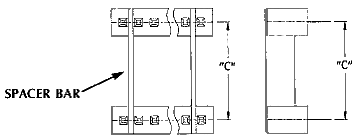

Optional spacer available for mounting on .300 [7.62], .600 [15.24], .900 [22.86], 1.100 [27.94], and 1.300 [33.02] centers. Consult Beckwith Electronics for other sizes.
SPECIFICATIONS:
Body is red UL 94-HB Glass-filled Nylon. Consult Beckwith Electronics for UL 94V-0 rated material.
Pin is Grade A Phosphor Bronze per QQ-B-750.
Optional spacer is FR-4, .032 [.81] thick.
Pin plating is either 100 u [2.54 um] min. Tin per MIL-T-10727 or 10 u [.25 um] min. Gold per MIL-G-45204 over 50 u [1.27 um] min. Nickel per QQ-N-290.
Current rating=1.5 Amp.
Operating temperature:
221°F [105°C] Tin plating,
257°F [125°C] Gold plating.
Insertion Force=110 grams/pin average; Withdrawal Force=75 grams/pin average.
Accepts flat leads up to.014 x .020 wide [.36-.51], round leads up to .020 [.51] in diameter.
Socket accepts lead lengths from seating plane .080-.160 [2.03-4.06].
MOUNTING CONSIDERATIONS:
Suggested PCB hole size=.045 + .002 [1.14 + .05] dia.
"A"= No. of Pins per Row X .100 [2.54] +.050 [1.27]
"B"= (No. of Pins per Row - 1) X .100 [2.54]
|
Series 700
Elevator Strip-Line Sockets
with Bifurcated Contacts

|
