Aries Electronics

FEATURES:
Converts PLCC packaged ICs to DIP footprints.
Ideal for prototyping and testing/evaluation.
Available with PLCC sockets or PLCC pads on top side.
Consult Beckwith Electronics for panelized form or for mounting of consigned ICs.

SPECIFICATIONS:
Adapter body is black FR-4, .062 [1.58] thick, with 1 oz. min. Copper traces.
Solder tail pins are Brass Alloy 360 1/2 hard per UNS C36000 ASTM-B16-85.
Solder tail pin plating is 200 u [5.08 um] min. 93/7 Tin/Lead per MIL-P-81728 over 100 u [2.54 um] min. Nickel per QQ-N-290.
Optional PLCC sockets are white UL 94V-0 Liquid Crystal Polymer (LCP).
Socket contacts are Copper Alloy.
Socket contact plating is 150 u [3.81 um] min. Tin over 40 u [1.02 um] min. Nickel.
Consult Data Sheet Nos. 14001 and 14002 for further PLCC socket information.
Current rating=1 Amp.
Operating temperature=221°F [125°C].

MOUNTING CONSIDERATIONS:
Suggested PCB hole size=.028 + .003 [.71 + .08] dia.
Will plug into standard IC sockets.

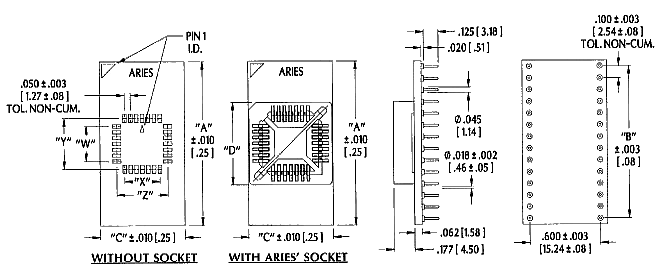

See table for pad layout when mounting PLCC socket.

Series 652000 & 653000
PLCC to DIP Adapters
Correct-A-Chip^tm Technology

Part Number	No. of Pos.	Dim. "A"	Dim. "B"	Dim. "C"	Dim. "D"	Dim. "W" +.003 [.08] non- cumulative	Dim. "X" +.003 [.08] non- cumulative	Dim. "Y" +.003 [.08]	Dim. "Z" +.003 [.08]	Pad Size
28-652000-10	28	1.400 [35.56]	1.300 [33.02]	.705 [17.91]	.705 [17.91]	.300 [7.62]	.300 [7.62]	.449 [11.41]	.449 [11.41]	.024 x .076 [.61 x 1.93]
32-652000-10	32	1.600 [40.64]	1.500 [38.10]	.705 [17.91]	.805 [20.45]	.400 [10.16]	.300 [7.62]	.549 [13.95]	.448 [11.39]	.024 x .076 [.61 x 1.93]
44-652000-10	44	2.200 [55.88]	2.100 [53.34]	.910 [23.11]	.910 [23.11]	.500 [12.70]	.500 [12.70]	.670 [17.02]	.670 [17.02]	.026 x .080 [.66 x 2.03]
68-652000-10	68	3.400 [86.36]	3.300 [83.82]	1.220 [30.99]	1.220 [30.99]	.800 [20.32]	.800 [20.32]	.945..24.00]	.945 [24.00]	.026 x .080 [.66 x 2.03]
84-652000-10	84	4.200 [106.68]	4.100 [104.14]	1.420 [36.07]	1.420 [36.07]	1.000 [25.40]	1.000 [25.40]	1.147 [29.13]	1.147 [29.13]	.026 x .080 [.66 x 2.03]
28-653000-10	28	1.400 [35.56]	1.300 [33.02]	.705 [17.91]	.705 [17.91]	.300 [7.62]	.300 [7.62]	.449 [11.41]	.449 [11.41]	.024 x .076 [.61 x 1.93]
32-653000-10	32	1.600 [40.64]	1.500 [38.10]	.705 [17.91]	.805 [20.45]	.400 [10.16]	.300 [7.62]	.549 [13.95]	.448 [11.39]	.024 x .076 [.61 x 1.93]
44-653000-10	44	2.200 [55.88]	2.100 [53.34]	.910 [23.11]	.910 [23.11]	.500 [12.70]	.500 [12.70]	.670 [17.02]	.670 [17.02]	.026 x .080 [.66 x 2.03]
68-653000-10	68	3.400 [86.36]	3.300 [83.82]	1.220 [30.99]	1.220 [30.99]	.800 [20.32]	.800 [20.32]	.945 [24.00]	.945 [24.00]	.026 x .080 [.66 x 2.03]
84-653000-10	84	4.200 [106.68]	4.100 [104.14]	1.420 [36.07]	1.420 [36.07]	1.000 [25.40]	1.000 [25.40]	1.147 [29.13]	1.147 [29.13]	.026 x .080 [.66 x 2.03]
