Aries Electronics

FEATURES:
Aries offers a complete line of DIP headers and covers useful for mounting components such as resistors, diodes, etc. Consult Data Sheet 12032 for mating DIP header information.
Four cover heights provide mounting of 1/8" [3.18] high to 3/4" [19.05] high components.

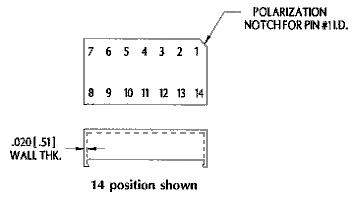

Pin positions are numbered on cover. Polarization notch identifies Pin 1.
Specifically designed to "snap" onto Aries' Series 600 Headers and Series 675 DIP Program Headers.

SPECIFICATIONS:
Cover is red UL 94-HB Glass-filled Nylon. Consult Beckwith Electronics for UL 94V-0 rated material.
Operating temperature=446°F [230°C].

Series 650
Header Covers

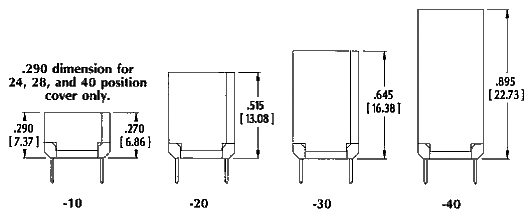

Cover No.	Max. Component Height	Available Sizes
-10	.125 [3.18]	4-24, 28, 40
-20	.375 [9.53]	14, 16, 24
-30	.500 [12.70]	14, 16
-40	.750 [19.05]	14, 16

Part Numbers
04-650-10
06-650-10
08-650-10
10-650-10
12-650-10
14-650-10
14-650-20
14-650-30
14-650-40
16-650-10
16-650-20
16-650-30
16-650-40
18-650-10
20-650-10
22-650-10
24-650-10
24-650-20
28-650-10
40-650-10
