Aries Electronics

FEATURES:
Aries offers a full line of DIP headers, available with either coined or screw machine contacts. Consult Data Sheet No. 12035 for screw machine contacts.
Snap-on, protective covers are available for all sizes shown below and accommodate .125 [3.18] to .750 [9.05] component heights. Consult Data Sheet No. 12033 for protective covers.
Body cavity design provides additional clearance for component mounting.

SPECIFICATIONS:
Body material is red UL 94-HB Glass-filled Nylon. Consult Beckwith Electronics for UL 94V-0 rated material.
Coined contacts are Brass, 1/2 hard.
Contact plating is either 100 u [2.54 um] min. Tin per MIL-T-10727 or 10 u [.25 um] min. Gold per MIL-G-45204 over 50 u [1.27 um] min. Nickel per QQ-N-290.
Contact current rating=2 Amps.
Operating temperature:
    221°F [105°C] Tin plating,
    257°F [125°C] Gold plating.

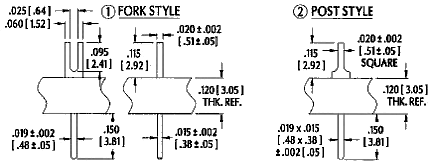

Fork contact accepts up to .025 [.64] diameter leads.

MOUNTING CONSIDERATIONS:
Suggested PCB hole size=.035 + .002 [.89 + .05] dia.

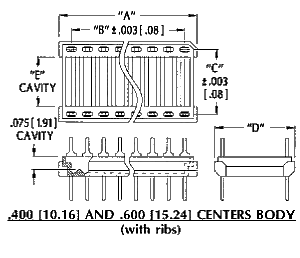

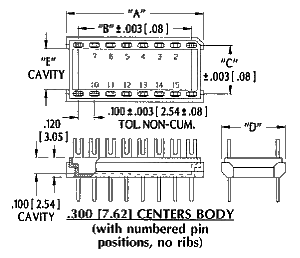

"A"= (No. of Pins per Row X .100 [2.54]) + .050 [1.27]
"B"= (No. of Pins per Row - 1) X .100 [2.54]

Series 600
DIP Headers
with Coined Contacts




Centers C Dim. D Dim. E
.300 [7.62] .395 [10.03] .252 [6.40]
.400 [10.16] .495 [12.57] .352 [8.94]
.600 [15.24] .695 [17.65] .552 [14.02]

Part Numbers
02-600-10
02-600-11
02-600-20
02-600-21
04-600-10
04-600-11
04-600-20
04-600-21
06-600-10
06-600-11
06-600-20
06-600-21
08-600-10
08-600-11
08-600-20
08-600-21
10-600-10
10-600-11
10-600-20
10-600-21
12-600-10
12-600-11
12-600-20
12-600-21
14-600-10
14-600-11
14-600-20
14-600-21
16-600-10
16-600-11
16-600-20
16-600-21
18-600-10
18-600-11
18-600-20
18-600-21
20-600-10
20-600-11
20-600-20
20-600-21
22-600-10
22-600-11
22-600-20
22-600-21
24-600-10
24-600-11
24-600-20
24-600-21
28-600-10
28-600-11
28-600-20
28-600-21
40-600-10
40-600-11
40-600-20
40-600-21
