Aries Electronics

Discontinued for reference only

FEATURES:
A choice of several pin count devices can be inserted without bending or otherwise damaging the legs, since no force is required to either insert or remove the component from the socket.
Compatible with pick and place operations.
Corner posts provide positive package registration.
Socket accepts JEDEC Types MO-047, MO-052, and other ceramic, leadless or J-lead packages (shimms required).

SPECIFICATIONS:
Socket body is black UL 94V-0 Glass-filled Polyphenylene Sulfide (PPS).
Contacts are Beryllium Copper Alloy 172.
Contact plating is 12 u [.30 um] min. Gold per MIL-G-45204, over 50 u [1.27 um] min. Nickel per QQ-N-290.
Hardware is Stainless Steel.
Contact current rating=1 Amp.
Contact resistance=30m Ohms max. (initial).
Insulation resistance=1000M Ohms min.
Dielectric strength=700 VAC cont. for 1 minute.
Self inductance=8.9 nH max. at 10 MHz.
Operating temperature=-67°F to 338°F [-55°C to 170°C].
Life cycle: 10,000 insertions minimum.

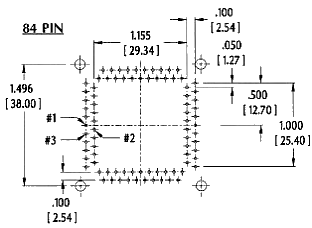

MOUNTING CONSIDERATIONS:
See Data Sheet No. 10007.

Series 536 PLCC
Test and Burn-in
Zero Insertion Force
Sockets

Part Number No.
of

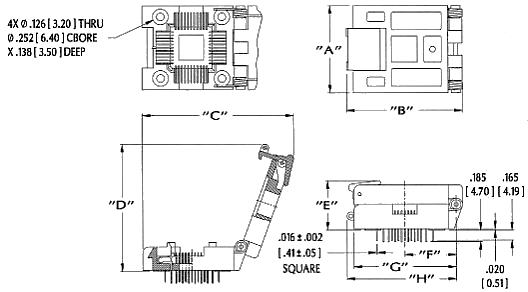

Pins Dim. "A" Dim. "B" Dim. "C" Dim. "D" Dim. "E" Dim. "F" Dim. "G" Dim. "H"

20-536-11 20 1.025 [26.04] 1.454 [36.93] 1.993 [50.62] 1.025 [26.04] .761 [19.33] .620 [15.75] 1.256 [31.90] 1.454 [36.93]

28-536-11 28 1.180 [29.97] 1.605 [40.77] 2.207 [56.06] 1.180 [29.97] .787 [19.99] .690 [17.53] 1.180 [29.97] 1.520 [38.68]

32-536-11 32 1.180 [29.97] 1.583 [40.21] 2.160 [54.86] 1.180 [29.97] .725 [18.42] .690 [17.53] 1.380 [35.05] 1.495 [37.97]

44-536-11 44 1.339 [34.01] 1.772 [45.01] 2.400 [60.96] 1.339 [34.01] .787 [19.99] .787 [19.99] 1.339 [34.01] 1.673 [42.49]

52-536-11 52 1.500 [38.10] 1.920 [48.77] 2.596 [65.94] 1.500 [38.10] .820 [20.83] .830 [21.08] 1.700 [43.18] 1.821 [46.25]

68-536-11 68 1.654 [42.01] 2.343 [59.51] 3.050 [77.47] 1.654 [42.01] .926 [23.52] .906 [23.01] 1.654 [42.01] 2.244 [57.00]

84-536-11 84 1.890 [48.00] 2.580 [65.53] 3.360 [85.34] 1.890 [48.00] .926 [23.52] 1.063 [27.00] 1.890 [48.00] 2.480 [62.99]

Part Number	No. of Pins	Dim. "A"	Dim. "B"	Dim. "C"	Dim. "D"	Dim. "E"	Dim. "F"	Dim. "G"	Dim. "H"
20-536-11	20	1.025 [26.04]	1.454 [36.93]	1.993 [50.62]	1.025 [26.04]	.761 [19.33]	.620 [15.75]	1.256 [31.90]	1.454 [36.93]
28-536-11	28	1.180 [29.97]	1.605 [40.77]	2.207 [56.06]	1.180 [29.97]	.787 [19.99]	.690 [17.53]	1.180 [29.97]	1.520 [38.68]
32-536-11	32	1.180 [29.97]	1.583 [40.21]	2.160 [54.86]	1.180 [29.97]	.725 [18.42]	.690 [17.53]	1.380 [35.05]	1.495 [37.97]
44-536-11	44	1.339 [34.01]	1.772 [45.01]	2.400 [60.96]	1.339 [34.01]	.787 [19.99]	.787 [19.99]	1.339 [34.01]	1.673 [42.49]
52-536-11	52	1.500 [38.10]	1.920 [48.77]	2.596 [65.94]	1.500 [38.10]	.820 [20.83]	.830 [21.08]	1.700 [43.18]	1.821 [46.25]
68-536-11	68	1.654 [42.01]	2.343 [59.51]	3.050 [77.47]	1.654 [42.01]	.926 [23.52]	.906 [23.01]	1.654 [42.01]	2.244 [57.00]
84-536-11	84	1.890 [48.00]	2.580 [65.53]	3.360 [85.34]	1.890 [48.00]	.926 [23.52]	1.063 [27.00]	1.890 [48.00]	2.480 [62.99]
