Aries Electronics

FEATURES:
Open frame allows for more efficient utilization of board space and better cooling.
Compatible with automatic insertion equipment.
Side-to-side and end-to-end stackable.

SPECIFICATIONS:
Body material is black UL 94V-0 4/6 Nylon.
Pin body is Brass Alloy 360 1/2 hard per UNS C36000 ASTM-B16-85.
Pin body plating is 200 u [5.08 um] min. 93/7 Tin/Lead per MIL-P-81728 over 100 u [2.54 um] min. Nickel per QQ-N-290.
4-fingered collet contact is Beryllium Copper Alloy per UNS C17200 ASTM-B194-92.
Contact plating is 10 u [.25 um] Gold per MIL-G-45204 over 50 u min. [1.27 um] Nickel per QQ-N-290.
Contact current rating=3 Amps.
Operating temperature=221°F [105°C].
Insertion Force=180 grams/pin; Withdrawal Force=90 grams/pin; Normal Force=140 grams/pin; based on a.018 [.46] dia. test lead.
Accepts leads .015-.025 [.38-.64] in diameter, .100-.125 [2.54-3.18] long.

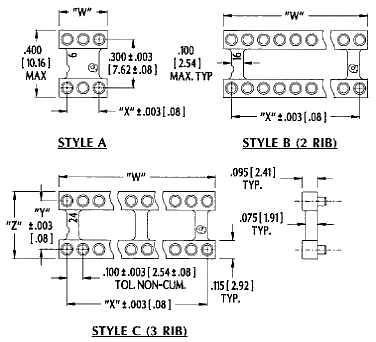

MOUNTING CONSIDERATIONS:
Suggested PCB hole size=.063 [1.60] dia.

"W"= No. of Pins per Row X .100 [2.54]
"X"= (No. of Pins per Row - 1) X .100 [2.54]

Series 518
Surface Mount
Open Frame Collet Sockets


Frame
Style
No.
of Ribs
Centers "Y" Dim. "Z" Available
Sizes
A 1 .300 [7.62] .400 [10.16] 6
B 2 .300 [7.62] .400 [10.16] 8, 14, 16, 18, 20
.400 [10.16] .500 [12.70] 20, 22
C 3 .300 [7.62] .400 [10.16] 24, 28
.400 [10.16] .500 [12.70] 24
.600 [15.24] .700 [17.78] 24, 28, 32

Part Numbers
06-3518-00
06-3518-01
08-3518-00
08-3518-01
14-3518-00
14-3518-01
16-3518-00
16-3518-01
18-3518-00
18-3518-01
20-3518-00
20-3518-01
20-4518-00
20-4518-01
22-4518-00
22-4518-01
24-3518-00
24-3518-01
24-4518-00
24-4518-01
24-6518-00
24-6518-01
28-3518-00
28-3518-01
28-6518-00
28-6518-01
32-6518-00
32-6518-01
