FEATURES:
Capacitor bypasses unwanted electromagnetic "noise."
Available with either .1uF or .33uF capacitor, 50V, Z5U temperature coefficient.
Open frame allows for more efficient utilization of board space and better cooling.
Compatible with automatic insertion equipment.
Side-to-side and end-to-end stackable.

SPECIFICATIONS:
Body material is blue UL 94V-0 Glass-filled Polyester Thermoplastic (PBT).
Pin body is Brass Alloy 360 1/2 hard per UNS C36000 ASTM-B16-85.
Pin body plating is either 200 u [5.08 um] min. 93/7 Tin/Lead per MIL-P-81728 or 10 u [.25 um] min. Gold per MIL-G-45204 over 100 u [2.54 um] min. Nickel per QQ-N-290.
4-fingered collet contact is Beryllium Copper Alloy per UNS C17200 ASTM-B194-92.
Contact plating is either 10 u [.25 um] min. Gold per MIL-G-45204 or 150 u [3.81 um] min. 93/7 Tin/Lead per MIL-P-81728 over 50 u [1.27 um] min. Nickel per QQ-N-290. Heavy 30 u [.76 um] Gold plating also available.
Contact current rating=3 Amps.
Operating temperature:
    221°F [105°C] Tin plating,
    257°F [125°C] Gold plating.
Insertion Force=180 grams/pin; Withdrawal Force=90 grams/pin; Normal Force=140 grams/pin; based on a .018 [.46] dia. test lead.
Accepts leads .015-.025 [.38-.64] in diameter.
Accepts lead lengths from .100 [2.54] min.

MOUNTING CONSIDERATIONS:
Suggested PCB hole size=.030 + .002 [.76 + .05] dia.

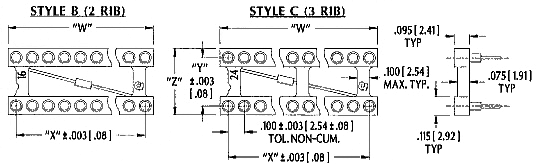

Series 518
Open Frame Capacitor Collet Sockets
with Solder Tail Pins

"W"= No. of Pins per Row X .100 [2.54]
"X"= (No. of Pins per Row - 1) X .100 [2.54]


Also available with wire wrap pins, Consult Beckwith Electronics.
Frame
Style
No.
of
Ribs
Centers Y Dim. Z Available Sizes
B 2 .300 [7.62] .400 [10.16] 14, 16, 18, 20
B 2 .400 [10.16] .500 [12.70] 20, 22, 24
C 3 .300 [7.62] .400 [10.16] 24, 28
C 3 .600 [15.24] .700 [17.78] 24,28, 32, 40

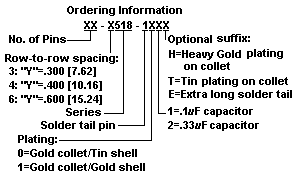

Part Numbers
