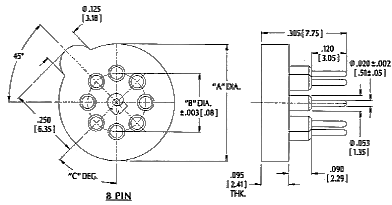

FEATURES:
 Aries' TO sockets feature molded chamfer lead-ins for easy device insertion.
High stand-off design for heat dissipation and easy cleaning.
External polarization for positive location.
SPECIFICATIONS:
Body material is red UL 94-HB Glass-filled Nylon. Consult Beckwith Electronics for UL 94V-0 rated material.
Pin body is Brass Alloy 360 1/2 hard per UNS C36000 ASTM-B16-85.
Pin body plating is 200 u [5.08 um] min. Tin/Lead per MIL-P-81728 over 100 u [2.54 um] min. Nickel per QQ-N-290.
4-fingered collet contact is Beryllium Copper Alloy per UNS C17200 ASTM-B194-92.
Contact plating is 30 u [.76 um] min. Gold per MIL-G-45204 over 50 u [1.27 um] Nickel per QQ-N-290.
Contact current rating=3 Amps.
Operating temperature=221°F [105°C].
Insertion Force=180 grams/pin; Withdrawal Force=90 grams/pin; Normal Force=140 grams/pin; based on a .018 [.46] diameter test lead.
Socket accepts leads .015-.025 [.38-.64] in diameter, .137-.180 [3.48-4.57] long.
MOUNTING CONSIDERATIONS:
Suggested PCB hole size=.030 + .002 [.76 + .05] dia.
|
