FEATURES:
Open frame allows for more efficient utilization of board space and better cooling.
2 and 3 level wire wrap pins available.
Compatible with automatic insertion equipment.
Side-to-side and end-to-end stackable.

SPECIFICATIONS:
Body material is blue UL 94V-0 Glass-filled Polyester Thermoplastic (PBT).
Pin body is Brass Alloy 360 1/2 hard per UNS C36000 ASTM-B16-85.
Pin body plating is either 10 u [.25 um] min. Gold per MIL-G-45204 or 200 u [5.08 um] min. 93/7 Tin/Lead per MIL-P-81728 over 100 u [2.54 um] min. Nickel per QQ-N-290.
4-fingered collet contact is Beryllium Copper Alloy per UNS C17200 ASTM-B194-92.
Contact plating is 30 u [.76 um] min. Gold per MIL-G-45204 over 50 u [1.27 um] min. Nickel.
Contact current rating=3 Amps.
Operating temperature:
    221°F [105°C] Tin plating,
    257°F [125°C] Gold plating.
Insertion Force=180 grams/pin; Wthdrawal Force=90 grams/pin; Normal Force = 140 grams/pin; based on a .018 [.46] dia. test lead.
Accepts leads .015-.025 [.38-.64] in diameter, .110-.160 [2.79-4.06] long.

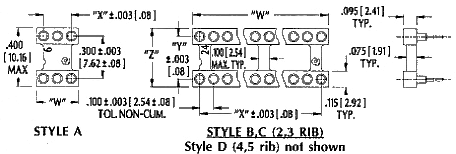

MOUNTING CONSIDERATIONS:
Suggested PCB hole size=.045 + .02 [1.14 + .05] dia.

"W"= No. of Pins per Row X .100 [2.54]
"X"= (No. of Pins per Row - 1) X .100 [2.54]

Series 508
Open Frame Collet Sockets
with Wire Wrap Pins


Frame
Style
No.
of Ribs
Centers "Y" Dim. "Z" Available
Sizes
A 1 .300 [7.62] .400 [10.16] 6
B 2 .300 [7.62] .400 [10.16] 8, 14, 16, 18, 20, 24
.400 [10.16] .500 [12.70] 20, 22
C 3 .300 [7.62] .400 [10.16] 28
.400 [10.16] .500 [12.70] 24
.600 [15.24] .700 [17.78] 24, 28, 32, 40, 48
D 4, 5 .900 [22.86] 1.000 [25.40] 50, 64

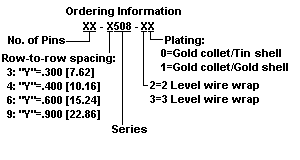

Part Numbers
06-3508-20
06-3508-21
06-3508-30
06-3508-31
08-3508-20
08-3508-21
08-3508-30
08-3508-31
14-3508-20
14-3508-21
14-3508-30
14-3508-31
16-3508-20
16-3508-21
16-3508-30
16-3508-31
18-3508-20
18-3508-21
18-3508-30
18-3508-31
20-3508-20
20-3508-21
20-3508-30
20-3508-31
20-4508-20
20-4508-21
20-4508-30
20-4508-31
22-4508-20
22-4508-21
22-4508-30
22-4508-31
24-3508-20
24-3508-21
24-3508-30
24-3508-31
24-4508-20
24-4508-21
24-4508-30
24-4508-31
24-6508-20
24-6508-21
24-6508-30
24-6508-31
28-3508-20
28-3508-21
28-3508-30
28-3508-31
28-6508-20
28-6508-21
28-6508-30
28-6508-31
32-6508-20
32-6508-21
32-6508-30
32-6508-31
40-6508-20
40-6508-21
40-6508-30
40-6508-31
48-6508-20
48-6508-21
48-6508-30
48-6508-31
50-9508-20
50-9508-21
50-9508-30
50-9508-31
64-9508-20
64-9508-21
64-9508-30
64-9508-31
