Aries Electronics

FEATURES:

LO-PRO^®file Collet Sockets are available with solder tail or wire wrap pins. Consult Data Sheet No. 12011 for wire wrap pins.

Choose from several size and plating options.

SPECIFICATIONS:
Body material is black UL 94-HB Glass-filled Nylon. Consult Beckwith Electronics for UL 94V-0 rated material.
Pin body is Brass Alloy 360 1/2 hard per UNS C36000 ASTM-B16-85.
Pin body plating is either 200 u [5.08 um] min. 93/7 Tin/Lead per MIL-P-81728 or 100 u [.025 um] min. Gold per MIL-G-45204 over 100 u [2.54 um] min. Nickel per QQ-N-290.
4-fingered collet contact is Beryllium Copper Alloy per UNS C17200 ASTM-B194-92.
Contact plating is either 30 u [.76 um] Gold per MIL-G-45204 over 50 u [1.27 um] min. Nickel per QQ-N-290.
Contact current rating=3 Amps.
Insertion Force=180 grams/pin; Withdrawal Force=90 grams/pin; Normal Force=140 grams/pin; based on a .018 [.46] dia. test lead.
Operating temperature:
221°F [105°C] Tin plating,
257°F [125°C] Gold plating.
Accepts leads .015-.025 [.38-.64] in diameter, .110-.162 [2.79-4.11] long.

MOUNTING CONSIDERATIONS:
Suggested PCB hole size=.045 +.002 [1.14 +.05] dia.

"W"= No. of Pins per Row X .100 [2.54]
"X"= (No. of Pins per Row - 1) X .100 [2.54]

Series 503
LO-PRO^®file Collet Sockets
with Wire Wrap Pins

Centers "Y"	Dim. "Z"	Body Style	Available Sizes
.200 [5.08]	.300 [5.08]	A	2 thru 10
.300 [7.62]	.400 [10.16]	C	2 thru 20
.300 [7.62]	.400 [10.16]	B	22 thru 40
.400 [10.16]	.500 [12.70]	C	2 thru 22
.600 [15.24]	.700 [17.78]	C	2 thru 40
.600 [15.24]	.700 [17.78]	B	42 thru 48
.900 [22.86]	1.000 [25.40]	B	2 thru 64

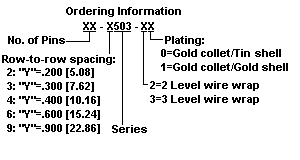

Part Numbers
02-2503-20
02-2503-21
02-2503-30
02-2503-31
02-3503-20
02-3503-21
02-3503-30
02-3503-31
02-4503-20
02-4503-21
02-4503-30
02-4503-31
02-6503-20
02-6503-21
02-6503-30
02-6503-31
02-9503-20
02-9503-21
02-9503-30
02-9503-31
04-2503-20
04-2503-21
04-2503-30
04-2503-31
04-3503-20
04-3503-21
04-3503-30
04-3503-31
04-4503-20
04-4503-21
04-4503-30
04-4503-31
04-6503-20
04-6503-21
04-6503-30
04-6503-31
04-9503-20
04-9503-21
04-9503-30
04-9503-31
06-2503-20
06-2503-21
06-2503-30
06-2503-31
06-3503-20
06-3503-21
06-3503-30
06-3503-31
06-4503-20
06-4503-21
06-4503-30
06-4503-31
06-6503-20
06-6503-21
06-6503-30
06-6503-31
06-9503-20
06-9503-21
06-9503-30
06-9503-31
08-2503-20
08-2503-21
08-2503-30
08-2503-31
08-3503-20
08-3503-21
08-3503-30
08-3503-31
08-4503-20
08-4503-21
08-4503-30
08-4503-31
08-6503-20
08-6503-21
08-6503-30
08-6503-31
08-9503-20
08-9503-21
08-9503-30
08-9503-31
10-2503-20
10-2503-21
10-2503-30
10-2503-31
10-3503-20
10-3503-21
10-3503-30
10-3503-31
10-4503-20
10-4503-21
10-4503-30
10-4503-31
10-6503-20
10-6503-21
10-6503-30
10-6503-31
10-9503-20
10-9503-21
10-9503-30
10-9503-31
12-3503-20
12-3503-21
12-3503-30
12-3503-31
12-4503-20
12-4503-21
12-4503-30
12-4503-31
12-6503-20
12-6503-21
12-6503-30
12-6503-31
12-9503-20
12-9503-21
12-9503-30
12-9503-31
14-3503-20
14-3503-21
14-3503-30
14-3503-31
14-4503-20
14-4503-21
14-4503-30
14-4503-31
14-6503-20
14-6503-21
14-6503-30
14-6503-31
14-9503-20
14-9503-21
14-9503-30
14-9503-31
16-3503-20
16-3503-21
16-3503-30
16-3503-31
16-4503-20
16-4503-21
16-4503-30
16-4503-31
16-6503-20
16-6503-21
16-6503-30
16-6503-31
16-9503-20
16-9503-21
16-9503-30
16-9503-31
18-3503-20
18-3503-21
18-3503-30
18-3503-31
18-4503-20
18-4503-21
18-4503-30
18-4503-31
18-6503-20
18-6503-21
18-6503-30
18-6503-31
18-9503-20
18-9503-21
18-9503-30
18-9503-31
20-3503-20
20-3503-21
20-3503-30
20-3503-31
20-4503-20
20-4503-21
20-4503-30
20-4503-31
20-6503-20
20-6503-21
20-6503-30
20-6503-31
20-9503-20
20-9503-21
20-9503-30
20-9503-31
22-3503-20
22-3503-21
22-3503-30
22-3503-31
22-4503-20
22-4503-21
22-4503-30
22-4503-31
22-6503-20
22-6503-21
22-6503-30
22-6503-31
22-9503-20
22-9503-21
22-9503-30
22-9503-31
24-3503-20
24-3503-21
24-3503-30
24-3503-31
24-6503-20
24-6503-21
24-6503-30
24-6503-31
24-9503-20
24-9503-21
24-9503-30
24-9503-31
26-3503-20
26-3503-21
26-3503-30
26-3503-31
26-6503-20
26-6503-21
26-6503-30
26-6503-31
26-9503-20
26-9503-21
26-9503-30
26-9503-31
28-3503-20
28-3503-21
28-3503-30
28-3503-31
28-6503-20
28-6503-21
28-6503-30
28-6503-31
28-9503-20
28-9503-21
28-9503-30
28-9503-31
30-3503-20
30-3503-21
30-3503-30
30-3503-31
30-6503-20
30-6503-21
30-6503-30
30-6503-31
30-9503-20
30-9503-21
30-9503-30
30-9503-31
32-3503-20
32-3503-21
32-3503-30
32-3503-31
32-6503-20
32-6503-21
32-6503-30
32-6503-31
32-9503-20
32-9503-21
32-9503-30
32-9503-31
34-3503-20
34-3503-21
34-3503-30
34-3503-31
34-6503-20
34-6503-21
34-6503-30
34-6503-31
34-9503-20
34-9503-21
34-9503-30
34-9503-31
36-3503-20
36-3503-21
36-3503-30
36-3503-31
36-6503-20
36-6503-21
36-6503-30
36-6503-31
36-9503-20
36-9503-21
36-9503-30
36-9503-31
38-3503-20
38-3503-21
38-3503-30
38-3503-31
38-6503-20
38-6503-21
38-6503-30
38-6503-31
38-9503-20
38-9503-21
38-9503-30
38-9503-31
40-3503-20
40-3503-21
40-3503-30
40-3503-31
40-6503-20
40-6503-21
40-6503-30
40-6503-31
40-9503-20
40-9503-21
40-9503-30
40-9503-31
42-6503-20
42-6503-21
42-6503-30
42-6503-31
42-9503-20
42-9503-21
42-9503-30
42-9503-31
44-6503-20
44-6503-21
44-6503-30
44-6503-31
44-9503-20
44-9503-21
44-9503-30
44-9503-31
46-6503-20
46-6503-21
46-6503-30
46-6503-31
46-9503-20
46-9503-21
46-9503-30
46-9503-31
48-6503-20
48-6503-21
48-6503-30
48-6503-31
48-9503-20
48-9503-21
48-9503-30
48-9503-31
50-9503-20
50-9503-21
50-9503-30
50-9503-31
52-9503-20
52-9503-21
52-9503-30
52-9503-31
54-9503-20
54-9503-21
54-9503-30
54-9503-31
56-9503-20
56-9503-21
56-9503-30
56-9503-31
58-9503-20
58-9503-21
58-9503-30
58-9503-31
60-9503-20
60-9503-21
60-9503-30
60-9503-31
62-9503-20
62-9503-21
62-9503-30
62-9503-31
64-9503-20
64-9503-21
64-9503-30
64-9503-31
