Aries Electronics

FEATURES:
Standard DIP Sockets are available with solder tail or wire wrap pins, all with bifurcated contacts. Consult Data Sheet No. 12004 for solder tail pins.
Aries offers these standard DIP sockets in more sizes than any other manufacturer.

SPECIFICATIONS:
Socket body is red UL 94-HB Glass-filled Nylon. Consult Beckwith Electronics for UL 4V-0 rated material.
Bifurcated contacts are Grade A spring-tempered Phosphor Bronze per QQ-B-750.
Contact plating is either 100 u [2.54 um] min. Tin per MIL-T-10727 or 10 u [.25 um] min. Gold per MIL-G-45204 over 50 u [1.27 um] min. Nickel per QQ-N-290.
Contact current rating=1.5 Amps.
Insertion Force=110 grams/pin average; Withdrawal Force=75 grams/pin average.
Operating temperature:
    221°F [105°C] Tin plating,
    257°F [125°C] Gold plating.
Accepts flat leads up to .014 x .020 wide [.36-.51], round leads up to .020 [.51] in diameter.
Socket accepts lead lengths from seating plane from .075-.160 [1.91-4.06].

MOUNTING CONSIDERATIONS:
Suggested PCB hole size=045 + .002 [1.12 + .05] dia.

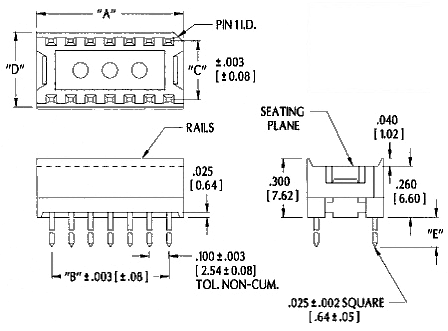

"A"= No. of Pins per Row X .100 [2.54] +.050 [1.27]
"B"= (No. of Pins per Row - 1) X .100 [2.54]

Series 501
Standard DIP Sockets
with Wire Wrap
Bifurcated Contacts


Wire Wrap Length "E"
2 level .410 [10.41]
3 level .690 [17.52]

Centers "C" Width "D" Available Sizes
.200 [5.08] .290 [7.36] 8, 10
.300 [7.62] .390 [9.90] 8, 14-20
.400 [10.16] .490 [12.45] 22
.600 [15.24] .690 [17.54] 8-24, 28-40, 48

Part Numbers
08-2501-20
08-2501-20WR
08-2501-21
08-2501-21WR
08-2501-30
08-2501-30WR
08-2501-31
08-2501-31WR
08-3501-20
08-3501-20WR
08-3501-21
08-3501-21WR
08-3501-30
08-3501-30WR
08-3501-31
08-3501-31WR
08-6501-20
08-6501-20WR
08-6501-21
08-6501-21WR
08-6501-30
08-6501-30WR
08-6501-31
08-6501-31WR
10-2501-20
10-2501-20WR
10-2501-21
10-2501-21WR
10-2501-30
10-2501-30WR
10-2501-31
10-2501-31WR
10-6501-20
10-6501-20WR
10-6501-21
10-6501-21WR
10-6501-30
10-6501-30WR
10-6501-31
10-6501-31WR
12-6501-20
12-6501-20WR
12-6501-21
12-6501-21WR
12-6501-30
12-6501-30WR
12-6501-31
12-6501-31WR
14-3501-20
14-3501-20WR
14-3501-21
14-3501-21WR
14-3501-30
14-3501-30WR
14-3501-31
14-3501-31WR
14-6501-20
14-6501-20WR
14-6501-21
14-6501-21WR
14-6501-30
14-6501-30WR
14-6501-31
14-6501-31WR
16-3501-20
16-3501-20WR
16-3501-21
16-3501-21WR
16-3501-30
16-3501-30WR
16-3501-31
16-3501-31WR
16-6501-20
16-6501-20WR
16-6501-21
16-6501-21WR
16-6501-30
16-6501-30WR
16-6501-31
16-6501-31WR
18-3501-20
18-3501-20WR
18-3501-21
18-3501-21WR
18-3501-30
18-3501-30WR
18-3501-31
18-3501-31WR
18-6501-20
18-6501-20WR
18-6501-21
18-6501-21WR
18-6501-30
18-6501-30WR
18-6501-31
18-6501-31WR
20-3501-20
20-3501-20WR
20-3501-21
20-3501-21WR
20-3501-30
20-3501-30WR
20-3501-31
20-3501-31WR
20-6501-20
20-6501-20WR
20-6501-21
20-6501-21WR
20-6501-30
20-6501-30WR
20-6501-31
20-6501-31WR
22-4501-20
22-4501-20WR
22-4501-21
22-4501-21WR
22-4501-30
22-4501-30WR
22-4501-31
22-4501-31WR
22-6501-20
22-6501-20WR
22-6501-21
22-6501-21WR
22-6501-30
22-6501-30WR
22-6501-31
22-6501-31WR
24-6501-20
24-6501-20WR
24-6501-21
24-6501-21WR
24-6501-30
24-6501-30WR
24-6501-31
24-6501-31WR
28-6501-20
28-6501-20WR
28-6501-21
28-6501-21WR
28-6501-30
28-6501-30WR
28-6501-31
28-6501-31WR
30-6501-20
30-6501-20WR
30-6501-21
30-6501-21WR
30-6501-30
30-6501-30WR
30-6501-31
30-6501-31WR
32-6501-20
32-6501-20WR
32-6501-21
32-6501-21WR
32-6501-30
32-6501-30WR
32-6501-31
32-6501-31WR
34-6501-20
34-6501-20WR
34-6501-21
34-6501-21WR
34-6501-30
34-6501-30WR
34-6501-31
34-6501-31WR
36-6501-20
36-6501-20WR
36-6501-21
36-6501-21WR
36-6501-30
36-6501-30WR
36-6501-31
36-6501-31WR
38-6501-20
38-6501-20WR
38-6501-21
38-6501-21WR
38-6501-30
38-6501-30WR
38-6501-31
38-6501-31WR
40-6501-20
40-6501-20WR
40-6501-21
40-6501-21WR
40-6501-30
40-6501-30WR
40-6501-31
40-6501-31WR
48-6501-20
48-6501-20WR
48-6501-21
48-6501-21WR
48-6501-30
48-6501-30WR
48-6501-31
48-6501-31WR
