Aries Electronics

FEATURES:

A cost effective means of upgrading to SOJ or SOIC. .. without changing your PCB layout.

Available on .400 [10.16] and .600 [15.24] centers. Consult Data Sheet No. 18010 for adapters on .300 [7.62] centers.

SPECIFICATIONS:
Board material is .062 thick FR-4 with 1 oz. Copper traces, both sides.
Pins are Brass Alloy 360 1/2 hard per UNS C36000 ASTM-B16-85.
Pin plating is 200 u [5.08 um] min. 93/7 Tin/Lead per MIL-P-81728 over 100 u [2.54 um] min. Nickel per QQ-N-290.
Operating temperature = 221°F [105^oC].

MOUNTING CONSIDERATIONS:
Suggested PCB hole size=.028 + .002 [.71 + .05]. dia.

Series 45000X & 65000X
SOIC & SOJ to DIP Adapters
Correct-A-Chip^tm Technology

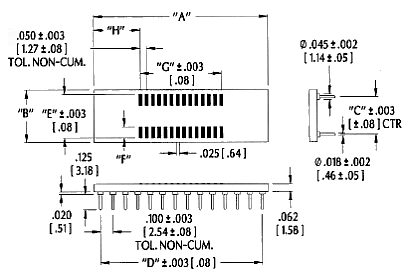

Part Number	Pins	Type	Dim. B	Centers C	Dim. E	Dim. F	Dim. G	Dim. H
28-450001-10	28	SOJ	.480 [12.19]	.400 [10.16]	.460 [11.68]	.080 [2.03]	.650 [16.51]	.325 [8.26]
32-450001-10	32	SOJ	.530 [13.46]	.400 [10.16]	.500 [12.70]	.090 [2.29]	.750 [19.05]	.425 [10.80]
32-650000-10	32	SOJ	.700 [17.78]	.600 [15.24]	.650 [16.51]	.200 [5.08]	.750 [19.05]	.425 [10.80]
24-650000-10	24	SOIC	.700 [17.78]	.600 [15.24]	.455 [11.56]	.150 [3.81]	.550 [13.97]	.180 [4.57]
28-650000-10	28	SOIC	.700 [17.78]	.600 [15.24]	.450 [11.43]	.075 [1.91]	.650 [16.51]	.375 [9.53]

"A"=No. of Pins per Row X .100 [2.54]
"D"=(No. of Pins per Row -1) X .100 [2.54]
