Aries Electronics

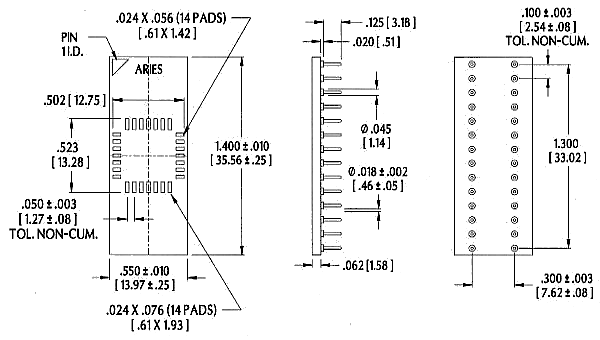

Converts 28 position, PLCC packaged ICs to a .300 [7.62] DIP footprint.
Adapter board is only .550 [13.97] wide.
Ideal for prototyping and testing/evaluation.
Aries' PLCC socket can be mounted on adapter. Consult Data Sheet Nos. 14001 and 14002 for Aries' PLCC socket information.
Consult Beckwith Electronics for panelized form or for mounting of consigned chips.

Adapter body is FR-4, .062 [1.58] thick, with 1 oz. min. Copper traces.
Solder tail pins are Brass Alloy 360 1/2 hard per UNS C36000 ASTM-B16-85.
Solder tail pin plating is 200 u [5.08 um] min. 93/7 Tin/Lead per MIL-P-81728 over 100 u [2.54 um] min. Nickel per QQ-N-290.
Current rating=1 Amp.
Operating temperature=221°F [105°C].

Suggested PCB hole size=.028 + .003 [.71 + .08] dia.
Will plug into standard IC sockets.

Part No. 1110125
for 28 Position,
.300 [7.62] DIP Adapter
Correct-A-Chiptm Technology
