FEATURES:
 8 pin DIP IC socket on the top and a circular, 8 pin TO
can male pin footprint on the bottom. ICs now available only in 8 pin DIPs can be readily mounted on boards having TO thru-hole footprints without having to redesign the board.
SPECIFICATIONS:
Socket body is black UL 94V-0 Glass-filled Polyester Thermoplastic (PET).
Adapter board is black FR-4, .062 thick.
Female pin body is Brass Alloy 360 1/2 hard per UNS C36000 ASTM-B16-85.
Female pin body plating is 10 u [.25 um] min. Gold per MIL-G-45204 over 100 u [2.54 um] min. Nickel per QQ-N-290.
Collet contact is Beryllium Copper Alloy per UNS C17200 ASTM-B194-92.
Contact plating is 10 u [.25 um] min. Gold per MIL-G-
45204 over 50 u [1.27 um ] min. Nickel per QQ-N-290.
Male pin is Brass Alloy 360 1/2 hard per UNS C36000 ASTM-B16-85.
Male pin plating is 200 u [5.08 um] min. 93/7 Tin/Lead per MIL-P-81728 over 100 u [2.54 um] min. Nickel per QQ-N-290.
Current rating = 3 Amps.
Operating temperature=221°F [105°C].
Insertion Force=180 grams/pin; Withdrawal Force=90 grams/pin; Normal Force=140 grams/pin; based on a .018 [.46] diameter test lead.
Accepts leads .015-.025 [.38-.64] in diameter, .100-.125 [2.54-3.18] long.
MOUNTING CONSIDERATIONS:
Suggested PCB hole size=.028 + .002 [.71 + .05] dia.
|
Series 1109522 & 1109523

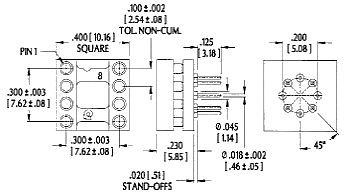

DIP to TO Adapter
Correct-A-Chiptm Technology
|
