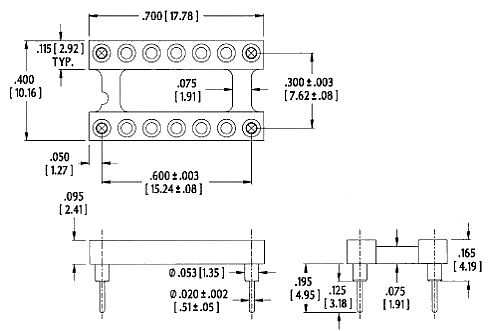

This four pin socket (in a 14 position frame) accepts standard oscillator packages.
Designed to be end-to-end or side-to-side stackable.
Machine insertable.

Body material is blue UL 94V-0 Glass-filled Polyester Thermoplastic (PBT).
Pin body is Brass Alloy 360 1/2 hard per UNS C36000 ASTM-B16-85.
Pin body plating is 200 u [1.27 um] min. 93/7 Tin/Lead per MIL-P-81728 over 100 u [2.54 um] min. Nickel per QQ-N-290.
4-fingered collet contact is Beryllium Copper Alloy per UNS C17200 ASTM-B194-92.
Contact plating is 10 u [.25 um] min. Gold per MIL-G-45204 over 50 u [1.27 um] min. Nickel per QQ-N-290.
Contact current rating=3 Amps.
Operating temperature=221°F [105°C].
Insertion Force=180 grams/pin; Withdrawal Force=90 grams/pin; Normal Force=140 grams/pin; based on a .018 [.46] diameter test lead.
Accepts leads .015-.025 [.38-.64] in diameter, .100-.146 [2.54-3.71] in length.

Suggested PCB hole size=.030 + .002 [.76 + .05] dia.

Part No. 1107741
Oscillator Sockets
